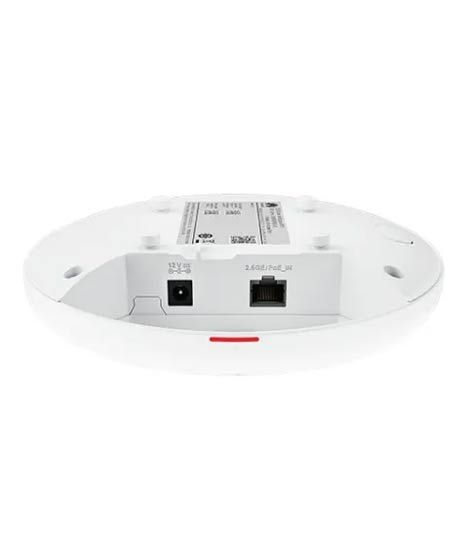

Huawei eKit BE3600 Dual Band 2.5GE Wi-Fi 7 Access Point (AP371) 3 Year Official Warranty - On Installments - IS-0217

Technical specifications

Dimensions (diameter x length)

180 mm x 35 mm (7.09 in. x 1.38 in.)

Port type

1 x 100M/1GE/2.5GE electrical port

1 x USB port

The 2.5GE electrical port supports PoE input.

LED indicator

Indicates the power-on, startup, running, alarm, and fault states of the system.

Power specifications

Power input

DC: 12 V ± 10%

PoE power supply: in compliance with 802.3at/af

When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is unavailable, and the details refer to the Info Finder.

Maximum power consumption

13.6 W (excluding USB)

The actual maximum power consumption depends on local laws and regulations.

Environmental specifications

Operating temperature

–10°C to +50°C (14°F to 122°F)

The temperature on part of the AP shell may be higher than its operating temperature upper limit. The AP's performance will not be affected as long as the shell temperature complies with the safety standards.

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

5% to 95% (non-condensing)

Altitude

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure

53 kPa to 106 kPa

Radio Specifications

Antenna type

Built-in smart antennas

Antenna gain

2.4 GHz: 4 dBi

5 GHz: 5 dBi

Maximum quantity of SSIDs

10

Maximum number of access STAs

128

The actual number of users varies according to the environment.

Maximum transmit power

2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power)

The actual transmit power depends on local laws and regulations.

Power adjustment increment

1 dBm
