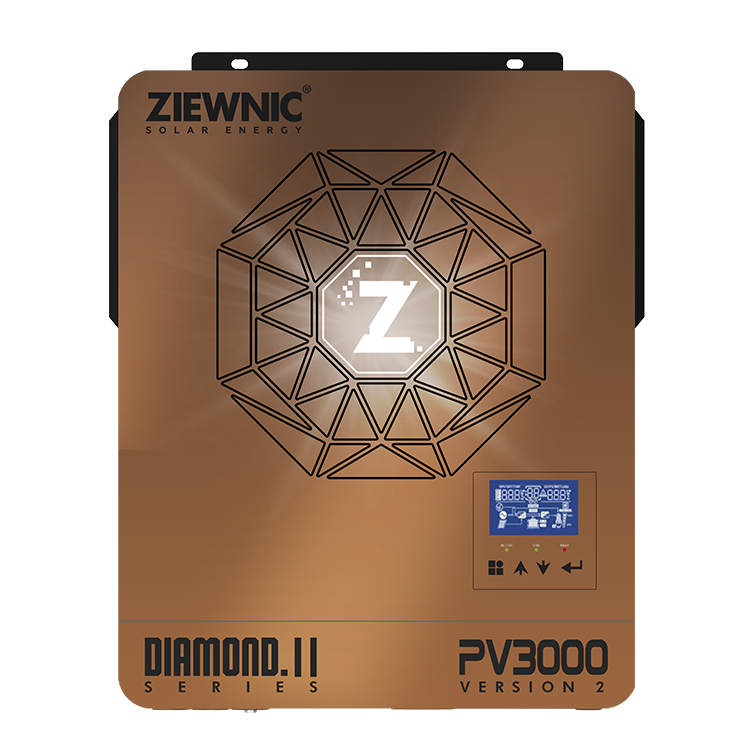

Ziewnic Diamond II 6G Series 2.2KVA (PV3000) Pure MPPT Installment By Ziewnic Solar Energy Official store
- Introducing 1st time in Pakistan, single phase Inverters support three phase when installed in parallel
- 100% Pure Sine wave Inverter
- Touch screen control module with various communications
- PV and utility power the load at the same time can be set
- Output power factor PF-1.0
- Energy generated record, load record history information and fault record
- Support Peak-Valley Charge
- Parallel operation up to 9 units
- Built-in two 10000W MPPTs, with wide input range: 120-450VDC
- Reserved communication parts (RS232 RS485,CAN)
- Upgraded 5th generation smart and intelligent solar inverter
- Zero transfer time
- E ciently Work with & with out battery
- Optional Wi-Fi interface with Android & IOS
- Battery Equalization/Compatible with Li-ion, LifePo4 and etc )
- Conformal Coating to Prevent from Dust and Humidity
- Easy Replacement of fans
- Overload and Short Circuit Protection
- European Design and Engineered in Taiwan
- Built in zero export, 100% reverse grid feeding
As low as
PKR75,999.00
Availability:
In stock
SKU
ZW_Diamond_2.2KVA (PV3000)_INST
-
SPECIFICATION Rated Power 2200VA AC Input Ac Input 230 VAC Voltage 170~280 VAC (For Personal Computer) Selectable Voltage Range 90~280VAC (For Home Appliances) Frequency Range 50 HZ / 60 HZ (Auto Sensing) AC OUTPUT AC Voltage Regulation 230 VAC + 5% Nominal Current Output 9.09A Efficiency (Peak) PV to INV 97% Efficiency (Peak) Battery to INV 94% Transfer Time 10ms Typical(MS); 20ms Stapical( Appliances) BATTERY AND AC CHARGER Battery Voltage 12 VDC Floating Charge Voltage 14 VDC Overcharge Protection 16 VDC Maximum AC Charge Current 80A SOLAR CHARGER Maximum PV Array Power 3000W MPPT Range @ Operating Voltage 55-430 VDC Maximum PV Array Open Circuit Voltage 430 VDC Maximum Charge Current TRUE (MPPT) 80A Maximum PV Input Current 18A Maximum Efficiency 98% PHYSICAL Communication Interface RS323/GPRS/Wi-Fi OPERATING ENVIRONMNET Humidity 5% to 95% Relative Humidity (Non~Condensing) Operating Temperature 0°C~55°C Storage Temperature -15°C-~60°C
| On Installment | No |
|---|---|
| Brand | Default |
