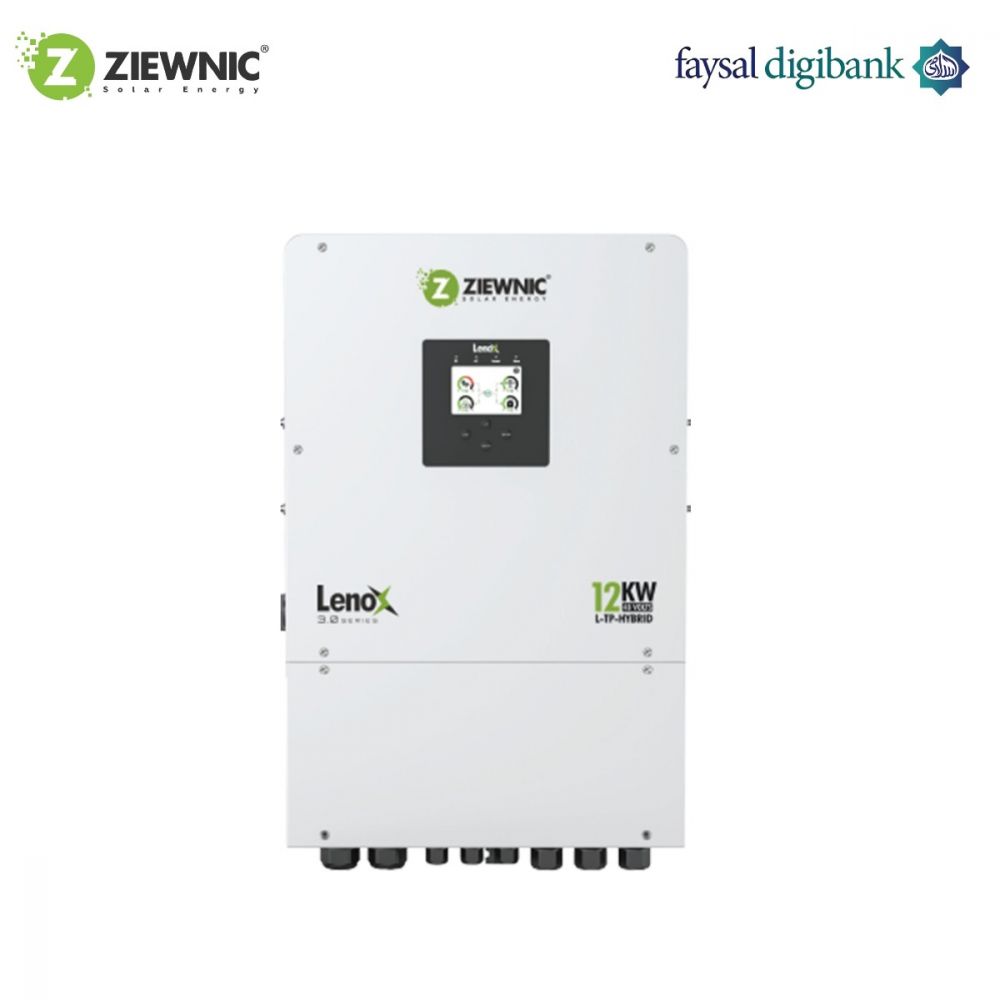

ZIEWNIC LENOX 12KW 3.0 Series L-SP/ TP - HYBRID (PV15600) 48V ON & OFF GRID INVERTER WITH ENERGY STORAGE By Ziewnic Solar Energy Official store
- Compatible with almost all 48V - LifePO4 Battery Pack
- External light indicator, logging status at a glance
- Colorful Touch LCD
- 6 Time Periods for battery charging / discharging
- Support storing energy from Diesel Generator
- AC Coupling to retrofit existing solar system
- Plug and play, pick power with-in inverter, no external power needed, easy to install
- IP65 water-proof design, resistant to bad weather, enhance stability
- External design, easier to replace faulty equipment
- End-user can monitor yields at any time.
- Rated Power12000WPV INPUTMax.power(KW)15600Max.DC voltage(V)800MPPT voltage range(V)200 - 650Max.input current(A)26 + 13Max.input strings number2+1AC OUTPUT (GRID-TIED)Grid voltage/range(V)230/400V (Three Phase)Frequency(Hz)50/60PF0.8lagging-0.8leadingTHDi<3%AC output topologyL+N+PEBATTERYBattery Voltage Range (V)40~63Max.charging voltage(V)63Max.charge/discharge current(A)240/240Battery TypeLithium / Lead-acid / TubulerUPS OUTPUTRated power (kw)12Peak Power (Off Grid)2 Times of rated power 10SecRated output current(A)30Rated frequency (Hz)50/60Transfer Time(ms)<10THDu<10%Overload capacity5s > 110%load; 10s >≥101%~110% loadPROTECTION & FEATUREAnti-island protectionYesInsulation monitoringYesResidual current monitoringYesArc fault protectionYes (Optional)Parallel functionYes, MultipleParallel functionYes, MultipleOther protectionAC Over-Current, AC Over-Voltage, Over Temperature ProtectionOther protectionAC Over-Current, AC Over-Voltage, Over Temperature ProtectionGENERAL SPECIFICATIONSEfficiency (peak)99%Efficiency (peak)99%Degree of protectionIP65Degree of protectionIP65Operation temperature range (°C)-40°C~60°C, >45°C deratingCoolingSmart CoolingCoolingSmart CoolingRelative humidity5~95%(non-condensing)Relative humidity5~95%(non-condensing)Altitude(>2000m Derating)Altitude(>2000m Derating)Dimensions W x D x H(mm)446*486*256Dimensions W x D x H(mm)446*486*256EMC/Safety RegulationIEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4EMC/Safety RegulationIEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4Isolation transformerNoIsolation transformerNoSelf-consumption(W)<5Self-consumption(W)<5DISPLAY AND COMMUNICATIONDisplayTouch screenInterfaceStandard:RS232,CAN&RS485; Optional:WiFi,CTSafety standardEN/IEC62109-1,EN/IEC62109-2
PKR748,999
Availability:
In stock
SKU
ZW_ZIEWNIC_LENOX_12KW_3.0_PV15600_48V_INST
- Compatible with almost all 48V - LifePO4 Battery Pack
- External light indicator, logging status at a glance
- Colorful Touch LCD
- 6 Time Periods for battery charging / discharging
- Support storing energy from Diesel Generator
- AC Coupling to retrofit existing solar system
- Plug and play, pick power with-in inverter, no external power needed, easy to install
- IP65 water-proof design, resistant to bad weather, enhance stability
- External design, easier to replace faulty equipment
- End-user can monitor yields at any time.
- Rated Power12000WPV INPUTMax.power(KW)15600Max.DC voltage(V)800MPPT voltage range(V)200 - 650Max.input current(A)26 + 13Max.input strings number2+1AC OUTPUT (GRID-TIED)Grid voltage/range(V)230/400V (Three Phase)Frequency(Hz)50/60PF0.8lagging-0.8leadingTHDi<3%AC output topologyL+N+PEBATTERYBattery Voltage Range (V)40~63Max.charging voltage(V)63Max.charge/discharge current(A)240/240Battery TypeLithium / Lead-acid / TubulerUPS OUTPUTRated power (kw)12Peak Power (Off Grid)2 Times of rated power 10SecRated output current(A)30Rated frequency (Hz)50/60Transfer Time(ms)<10THDu<10%Overload capacity5s > 110%load; 10s >≥101%~110% loadPROTECTION & FEATUREAnti-island protectionYesInsulation monitoringYesResidual current monitoringYesArc fault protectionYes (Optional)Parallel functionYes, MultipleParallel functionYes, MultipleOther protectionAC Over-Current, AC Over-Voltage, Over Temperature ProtectionOther protectionAC Over-Current, AC Over-Voltage, Over Temperature ProtectionGENERAL SPECIFICATIONSEfficiency (peak)99%Efficiency (peak)99%Degree of protectionIP65Degree of protectionIP65Operation temperature range (°C)-40°C~60°C, >45°C deratingCoolingSmart CoolingCoolingSmart CoolingRelative humidity5~95%(non-condensing)Relative humidity5~95%(non-condensing)Altitude(>2000m Derating)Altitude(>2000m Derating)Dimensions W x D x H(mm)446*486*256Dimensions W x D x H(mm)446*486*256EMC/Safety RegulationIEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4EMC/Safety RegulationIEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4Isolation transformerNoIsolation transformerNoSelf-consumption(W)<5Self-consumption(W)<5DISPLAY AND COMMUNICATIONDisplayTouch screenInterfaceStandard:RS232,CAN&RS485; Optional:WiFi,CTSafety standardEN/IEC62109-1,EN/IEC62109-2
| On Installment | No |
|---|---|
| Brand | Default |
