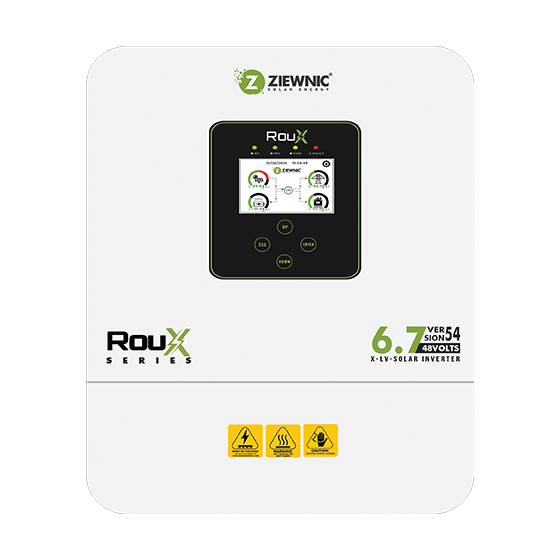

Ziewnic Roux Series 6.7KW PV9000 IP54 Solar Inverter By Ziewnic Solar Energy Official store
- KEY SALIENT FEA: URES FIRST TIME IN PAKISTAN, IP54 INVERTER WITH ALUMINIUM CASING AND REPAIRABLE WARRANTY 5 HIGH FREQUENCY INVERTER, HIGH EFFICIENCY, LIGHT WEIGHT OUTPUT POWER FACTOR 1 SUPPORT LITHIUM BATTERY ACTIVATION AND WAKE-UP START FUNCTION SUPPORT LITHIUM BATTERY, GEL BATTERY, VRLA BATTERY 98% REAL TIME SHARING COLORFUL TOUCH LCD PARALLEL SUPPORT UPTO JUNITS HIGH PV INPUT VOLTAGE RANGE (60~500 VDC) REALTIME DISPLAY OF ACTUAL LOAD POWER PURE SINE WAVE OUTPUT, ADAPTABLE TO DIFFERENT LOADS OUTPUT SHORT CIRCUIT PROTECTION FUNCTION 1P54 DUST & WATER RESISTANCE ACCORDING TO USER NEEDS, MANY PARAMETERS CAN BE ADJUSTED BUILT-IN Wi-Fi FOR END-USER CAN MONITOR YIELDS AT ANY TIME. EXTERNAL LIGHT INDICATOR, LOGGING STATUS AT A GLANCE Built-in Wi-Fi Configration Ap | Ziewnic Inverter / PV Pro Available i0S & Android
As low as
PKR182,999.00
Availability:
In stock
SKU
ZW_IP54_6.7 KW_PV9000_INST
| Rated Power | 7000W |
| INPUT | |
|---|---|
| AC Input | 220/230/240VAC |
| Input Voltage Range | 90-280VAC±3V（NORMAL MODE) 170-280VAC±3V（UPS MODE） |
| Frequency | 50HZ/60HZ(SELF-ADAPTION) |
| OUTPUT | |
| Rated Power PV MODE | 6700W |
| Output voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60HZ±0.1% |
| Output Wave | PURE SINE WAVE |
| Transfer Time (Adjustable) | 10MS FOR COMPUTER EQUIPMENT, 20MS FOR HOUSEHOLD EQUIPMENT |
| Peak Power | 12400VA |
| Overload Ability | BATTERY MODE: 10.5S@110%~150% LOAD, 5.5S@150%~200% LOAD, 200MS@>200% LOAD |
| Peak Efficiency | >94% |
| BATTERY | |
| Rated Power DC Mode | 6500W |
| Rated Voltage | 48VDC |
| Constant charging voltage (Adjustable) | 56.4VDC |
| Float charging voltage (Adjustable) | 54VDC |
| CHARGER | |
| Max PV Input Wattage | 9000W |
| MPPT Tracking Range | 60~500VDC |
| Best Vmp Working Range | 360~430VDC |
| MAX PV Input Voltage | 500VDC |
| MAX PV Input Current | 36A |
| MAX PV Charge Current | 120A |
| MAX AC Charging Current | 100A |
| MAX Charge Current | 120A |
| LCD DISPLAY | |
| LCD Display | CAN DISPLAY OPERATING MODE/LOAD/INPUT/OUTPUT |
| IP GRADE | |
| IP Grade | IP54 |
| COMMUNICATION SPECIFICATION | |
| Communication Port | RS232 |
| TEMPERATURE | |
| Operating temperature | 0~50°C |
| Operating environment humidity | 20%~95% |
| Storage temperature | -15~60°C |
| Noise | ≤50DB |
| DIMENSION | |
| Dimension mm(HxWxD) | 529 X 411.5 X 111.5 |
| On Installment | No |
|---|---|
| Brand | Default |
