Category: Electronics ,Home Appliances ,Generator, UPS, Solar & Power Generation ,Solar Panel

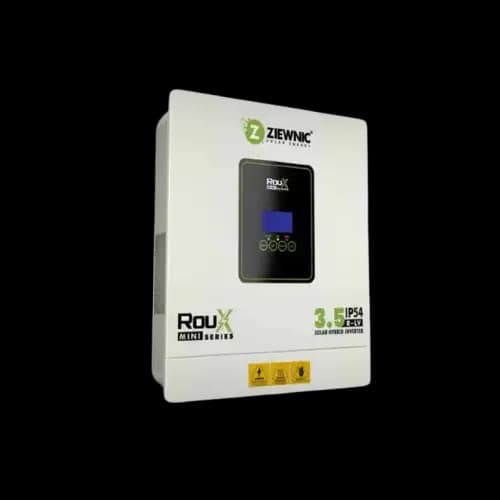

SKU: Ziewnic Roux Mini Series 3.5KW (PV5000)
Color:
In Stock
Installment Plan:
yes
Installments:
Select Installment plan
1
Add To Wishlist
Share
Product Description
| Rated Power | 3500VA |
Free Shipping & Returns on this item
Delivery within 3-5 working days
Money Back Guarantee
More products from seller
| AC Input Voltage | 230 VAC |
| Voltage | 170~280 VAC (For Personal Computer) |
| Selectable Voltage Range | 90~280VAC (For Home Appliances) |
| Frequency Range | 50 HZ / 60 HZ (Auto Sensing) |
| AC OUTPUT | |
|---|---|
| AC Voltage Regulation | 230 VAC + 5% |
| Nominal Current Output | 14.54A |
| Efficiency (Peak) PV to INV | 97% |
| Efficiency (Peak) Battery to INV | 94% |
| Transfer Time | 10ms Typical(MS); 20ms Stapical( Appliances) |
| BATTERY AND AC CHARGER | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Maximum AC Charge Current | 80A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 5000W |
| MPPT Range @ Operating Voltage | 55-430 VDC |
| Maximum PV Array Open Circuit Voltage | 430 VDC |
| Maximum Charge Current | TRUE (MPPT) 80A |
| Maximum PV Input Current | 18A |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Communication Interface | RS232/GPRS/Wi-Fi |
| Humidity | 5% to 95% Relative Humidity (Non~Condensing) |
| Operating Temperature | 0°C~55°C |
| Storage Temperature | -15°C-~ |
