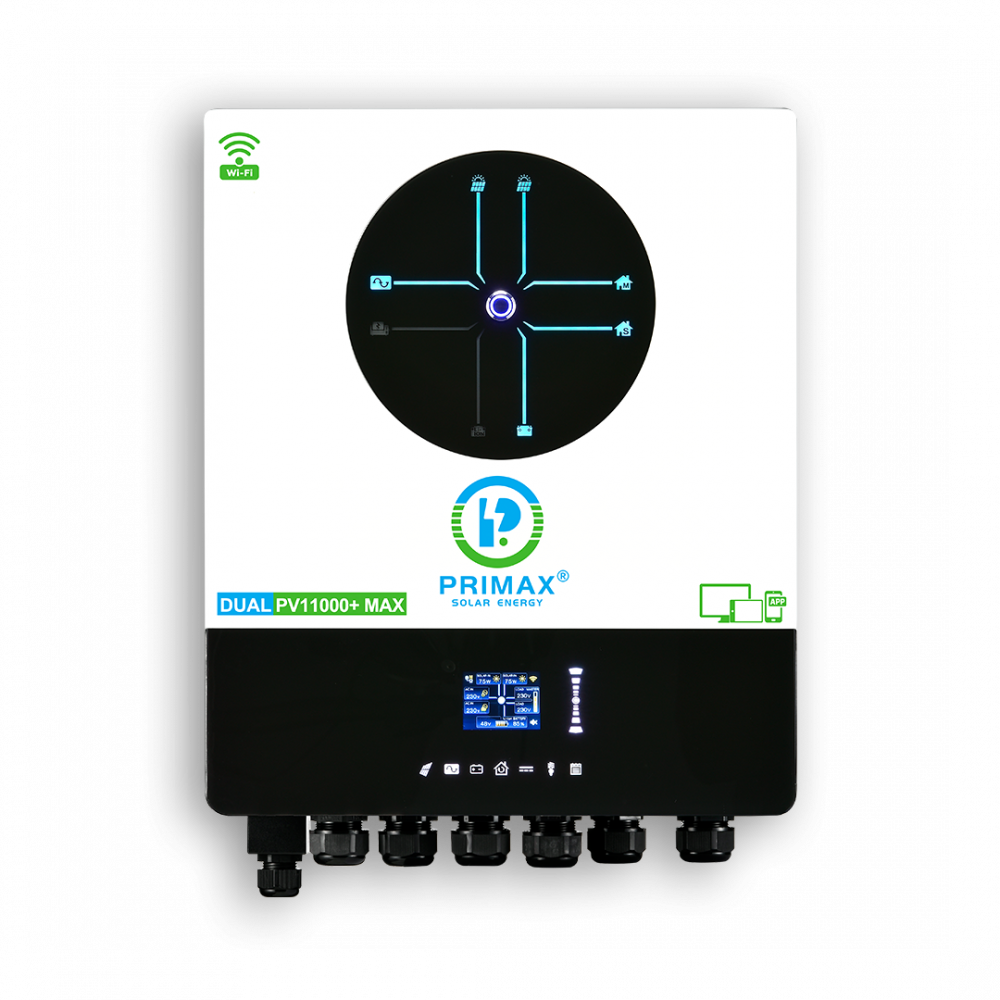

PRIMAX GALAXY DUAL PV 11000+MAX ULTRA 8KW
PRIMAX GALAXY series are advanced hybrid solar inverters. They offer pure sine wave output, wide PV input, built-in MPPT chargers, smart battery management, Wi-Fi monitoring, touch controls, and robust anti-dust design, 1-year Free Parts Replacement & 4-year service warranty,Term and condition apply as per warranty policy on warranty card.
PKR303,240
PKR319,200
Availability:
In stock
SKU
GALAXY DUAL PV 11000+MAX
Product Details
Model
GALAXY DUAL PV11000+ MAX
Maximum PV Input
11000W (5500W x 2)
Maximum PV Input Current
27A x 2 (Max 40A)
Wide PV Input Voltage Range
90VDC ~ 450VDC
Maximum Charging Current
120A
Reserved Communication Port
RS485, CAN-BUS or RS232 (for BMS)
Battery Independent Design
Yes
Battery Equalization Function
Optimizes battery performance and extends life cycle
Built-in Anti-Dust Kit
Yes
Maximum AC Output
8000W
Warranty
5 Years
Parallel Operation
Up to 6 units
Compatible to Utility Mains or Generator Input
Yes
Key Features
- ✓ Dual output for smart load management
- ✓ Maximum PV input current 27A x 2 (Max 40A)
- ✓ Maximum PV input: 11000W (5500W x 2)
- ✓ Wide PV input voltage range 90VDC~450VDC
- ✓ Status indication with RGB lights
- ✓ Built-in Wifi for mobile monitoring (Android/iOS App available)
- ✓ Supports USB On-the-Go function
- ✓ Reserved communication port for BMS
- ✓ Maximum charging current 120A
- ✓ Battery independent design
- ✓ Compatible to Utility Mains or generator input
- ✓ Built-in anti-dust kit
- ✓ Parallel operation up to 6 units
- ✓ Maximum AC Output 8000W
- ✓ Two independent AC power sources connected and switched automatically
- ✓ Built-in current transformer sensor to meet self-consumption application
- ✓ Support external BTS (Battery Temperature Sensor) detection
- ✓ Built-in power status lighting indicators
- ✓ Built-in 2.8" colored LCD with slide operation
- ✓ Support optional GFCI, Rapid shutdown, AFCI detections
