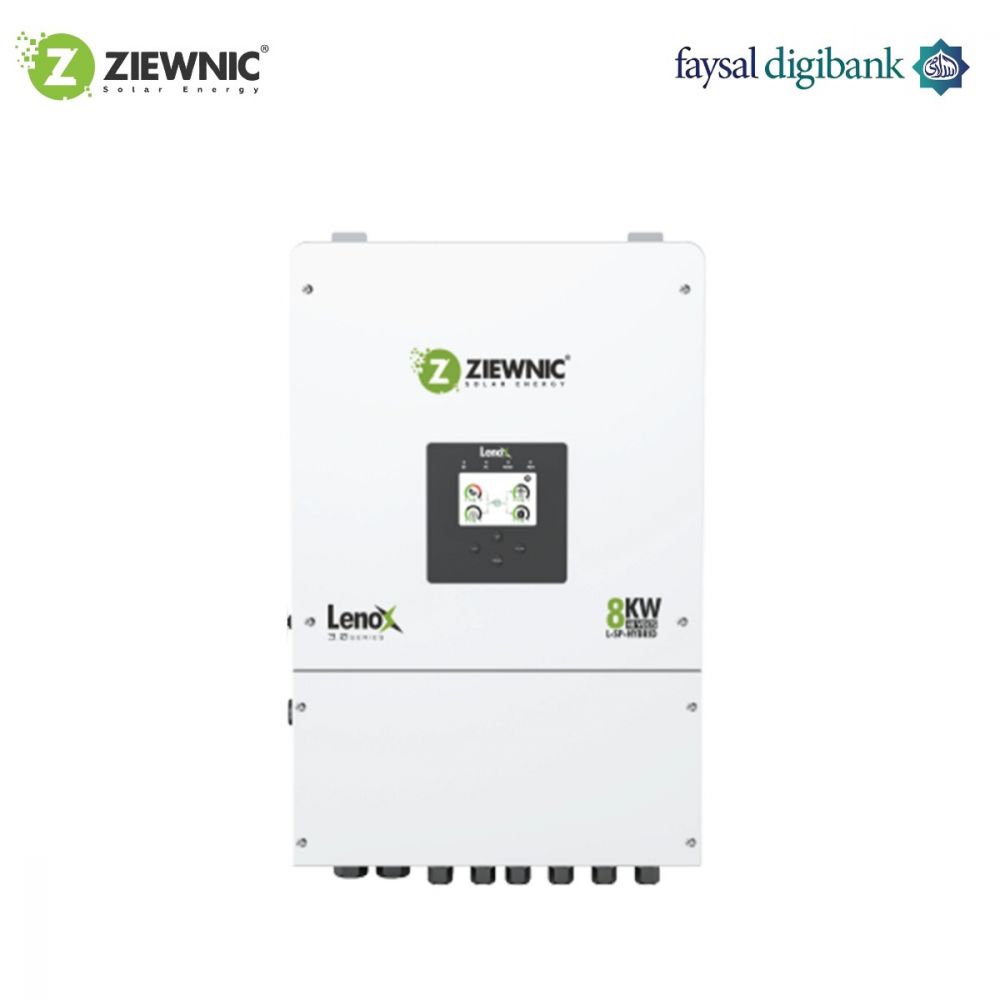

ZIEWNC LENOX 8KW 3.0 Series L-SP/ TP - HYBRID (PV10500) 48V ON & OFF GRID INVERTER WITH ENERGY STORAGE By Ziewnic Solar Energy Official store

Compatible with almost all 48V - LifePO4 Battery Pack
External light indicator, logging status at a glance
Colorful Touch LCD
6 Time Periods for battery charging / discharging
Support storing energy from Diesel Generator
AC Coupling to retrofit existing solar system
Plug and play, pick power with-in inverter, no external power needed, easy to install
IP65 water-proof design, resistant to bad weather, enhance stability
External design, easier to replace faulty equipment
End-user can monitor yields at any time.

As low as PKR391,999.00

Availability: In stock

SKU

ZW_ZIEWNIC_LENOX_3.0Series_Hybrid_8KW_INST

Compatible with almost all 48V - LifePO4 Battery Pack
External light indicator, logging status at a glance
Colorful Touch LCD
6 Time Periods for battery charging / discharging
Support storing energy from Diesel Generator
AC Coupling to retrofit existing solar system
Plug and play, pick power with-in inverter, no external power needed, easy to install
IP65 water-proof design, resistant to bad weather, enhance stability
External design, easier to replace faulty equipment
End-user can monitor yields at any time.

PV INPUT
Rated Power	6000W
Max.power(KW)	10500
Max.DC voltage(V)	500
MPPT voltage range(V)	125 - 430
Max.input current(A)	26+26
Max.input strings number	2+2
AC OUTPUT (GRID-TIED)
Grid voltage/range(V)	220/230V (Single Phase)
Frequency(Hz)	50/60
PF	0.8lagging-0.8leading
THDi	<3%
AC output topology	L+N+PE
BATTERY
Battery Voltage Range (V)	40~63
Max.charging voltage(V)	63
Max.charge/discharge current(A)	190/190
Battery Type	Lithium / Lead-acid / Tubular
UPS OUTPUT
Rated power (kw)	8
Peak Power (Off Grid)	2 Times of rated power 10Sec
Rated output current(A)	36.3
Rated frequency (Hz)	50/60
Transfer Time(ms)	<10
THDu	<10%
Overload capacity	5s > 110%load; 10s >≥101%~110% load
PROTECTION & FEATURE
Anti-island protection	Yes
Insulation monitoring	Yes
Residual current monitoring	Yes
Arc fault protection	Yes (Optional)
Parallel function	Yes, Multiple
Other protection	AC Over-Current, AC Over-Voltage, Over Temperature Protection
GENERAL SPECIFICATIONS
Efficiency (peak)	99%
Degree of protection	IP65
Operation temperature range (°C)	-40°C~60°C, >45°C derating
Cooling	Smart Cooling
Relative humidity	5~95%(non-condensing)
Altitude	(>2000m Derating)
Dimensions W x D x H(mm)	413630257.5
EMC/Safety Regulation	IEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Isolation transformer	No
Self-consumption(W)	<5
DISPLAY AND COMMUNICATION
Display	Touch screen
Interface	Standard:RS232,CAN&RS485; Optional:WiFi,CT
Safety standard	EN/IEC62109-1,EN/IEC62109-2
